Oceanside sits on a coastal terrace where loose sands and silty layers dominate the subsurface profile. The water table rises within a few feet of the surface near the San Luis Rey River. That combination makes conventional excavation tricky and compaction unreliable. Jet grouting design becomes the practical solution when you need to create a stiff, low-permeability block in place. Before specifying column geometry, we run a granulometria to confirm the fine content and grain size distribution. Those data directly influence the grout mix and the erosion energy required. In our experience, the marine influence here demands a higher cement factor than inland projects.
Jet grouting design converts loose coastal sands into a controlled, stiff mass that behaves predictably under seismic loads.
Method and coverage
Regional considerations
A three-story hotel near the Oceanside Pier was sinking unevenly because the loose sand under one corner could not support the footing load. The owner considered deep piles but the budget was tight. We designed a jet grouting grid that replaced the upper 8 meters of untreated sand. The treatment area covered roughly 12 by 8 meters under the affected bay. Within six weeks the settlement stopped and the slab was re-leveled. Without that intervention, differential settlement would have cracked the facade and damaged the pool deck. Jet grouting design prevented a costly structural repair.
Standards that apply
ASCE 7-22 (Minimum Design Loads for Buildings), IBC 2021 (Chapter 18 – Soils and Foundations), ASTM D5092-04 (Standard Practice for Design of Grouting), FHWA-RD-00-029 (Jet Grouting Guidelines)
Complementary services
Pre-treatment soil characterization
Field and lab testing to define grain size, moisture content, and strength of the natural soil. Includes SPT, sampling, and granulometry.
Grout mix design and trial columns
Laboratory formulation of the cement-bentonite-water mix. Followed by field trial columns to verify diameter, strength, and permeability.
Post-treatment quality control
Core drilling and unconfined compression tests on extracted samples. We also perform permeability tests to confirm the design criteria.
Typical parameters
Top questions
How does jet grouting design differ from conventional grouting?

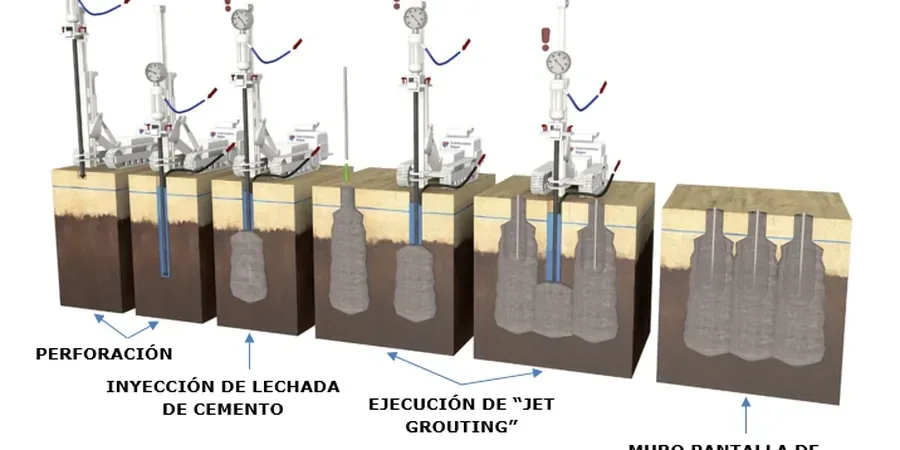

Jet grouting uses high-pressure fluid to erode and mix soil in place, creating columns or panels. Conventional grouting simply fills voids or fractures. Jet grouting works in loose sands and silts where permeability is low.
What is the typical depth range for jet grouting in Oceanside?
We commonly treat depths between 5 and 25 meters. Below 25 meters the column diameter decreases and the cost rises. Shallow treatment (3–8 m) is typical for slab support or underpinning.
How does the high groundwater affect the jet grouting process?
The water table slows the curing time slightly. We adjust the water-cement ratio and sometimes add an accelerator. The final strength is still achieved within 28 days. No dewatering is required.
Can jet grouting design help with seismic settlement in Oceanside?
Yes. Loose sands in this area are prone to liquefaction during a strong earthquake. Jet grouting densifies the soil and reduces its liquefaction potential. The treated block acts as a stiff element that resists cyclic loading.
What does jet grouting design cost for a typical Oceanside project?
The cost ranges between US$1.770 and US$6.710 depending on the column volume, depth, and site access. We provide a firm quote after reviewing the soil profile and the treatment volume.
