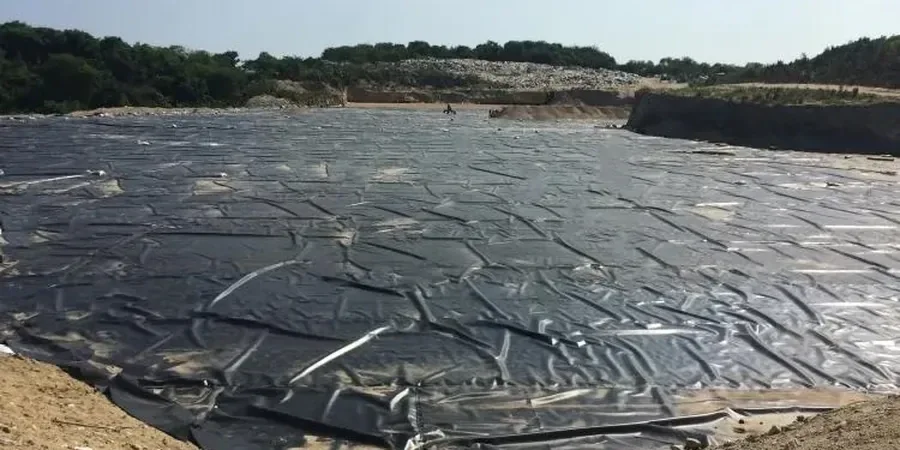

The field crew unrolls a 1.5-mm HDPE sheet across the test pad near Oceanside Harbor. After scanning the seams with a hot wedge welder, they pause to check the weld peel adhesion with a field tensiometer. This level of detail defines how we approach geomembrane specification in Oceanside, where marine air and variable subgrades demand high puncture resistance and UV stability. We follow GRI-GM13 for polyethylene and ASTM D6392 for reinforced membranes. Before the liner goes down, we verify the subgrade compaction with a placa de carga test and review soil chemistry from a granulometria analysis.
In Oceanside, salt spray and a fluctuating water table make thick HDPE with high UV resistance the recommended choice for long-term containment.
Method and coverage
Key parameters we always verify:
- Thickness and tensile yield per ASTM D6693
- Tear and puncture resistance per ASTM D1004 and D4833
- Carbon black content per ASTM D4218
Regional considerations
Compare a landfill cell near the Oceanside Municipal Airport with a stormwater basin on the coastal bluffs above Buena Vista Lagoon. In the airport area, deep alluvial sands create a stable foundation, but the geomembrane must resist punctures from angular gravel. On the bluffs, the clay-rich soil can shrink during dry spells, leading to differential settlement that stresses the liner. Both sites share a risk of UV degradation from year-round sun. A proper geomembrane specification accounts for these local contrasts by adjusting thickness, texturing, and anchoring design.
Standards that apply
GRI-GM13 (HDPE geomembrane standard), ASTM D6392 (reinforced geomembrane seam testing), ASTM D4437 (roll seam nondestructive testing), EPA 9090 (chemical compatibility test)
Complementary services
Containment Liner Design
Full specification of HDPE, LLDPE, or reinforced geomembranes for landfills, ponds, and secondary containment. Includes subgrade evaluation, thickness selection, and seam schedule.
Field Quality Control
On-site testing of seams (peel, shear, vacuum box) and liner integrity per ASTM D4437. We provide daily reports and photographic documentation.
Chemical Compatibility Review
Laboratory assessment of leachate or stored liquid interaction with the geomembrane polymer. We reference EPA 9090 and produce a compatibility matrix.
Typical parameters
Top questions
What thickness of geomembrane is recommended for Oceanside landfills?
For municipal solid waste cells we typically specify 1.5 mm (60 mil) HDPE as a minimum. For hazardous waste or deep leachate sumps, we recommend 2.0 mm (80 mil) HDPE to increase puncture and chemical resistance.
How does the marine environment affect geomembrane selection in Oceanside?
Salt spray accelerates UV degradation and can attack exposed edges. We specify HDPE with minimum 2.5% carbon black and a UV stabilizer package. Textured sheet is used on slopes steeper than 3H:1V to improve interface friction.
What is the typical cost range for a geomembrane specification study in Oceanside?
A full specification including subgrade review, material selection, and seam schedule typically ranges from US$540 to US$1,490 depending on site complexity and number of liner layers.
Do you test seams in the field or only in the lab?
We test all field seams with both nondestructive methods (vacuum box, air lance) and destructive samples (peel and shear) per GRI-GM19. Samples are sent to an ISO 17025 accredited lab for tensile testing.
